220-1100nm UV Silicon Divergent Beam 2W 1" ID Integrating Sphere

Introducing the divergent beam UV silicon, an essential tool for precise UV measurements. This component has a wide transmission range from 220 to 1100 nm, making it ideal for a variety of applications.

Main characteristics:

• power: 2 W;


• Inner diameter: 1 inch;


• integrating sphere for precise measurements.

This product is ideal for scientific research, medical devices and industrial equipment where high accuracy and reliability of measurements in the ultraviolet spectrum are required.

Get a divergent beam UV silicon and give yourself an advantage in accurate measurements!

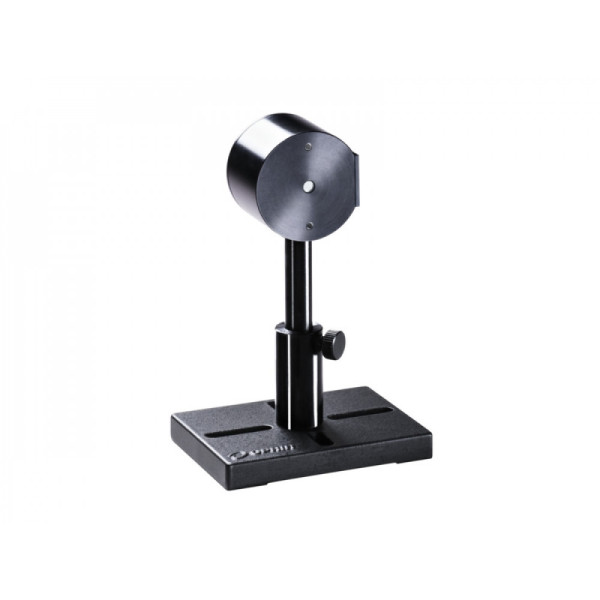

The IS-1-2W calibrated photodiode laser measuring sensor with an integrating sphere has an internal diameter of 1 inch. It is used to measure divergent beams up to +/- 50 degrees, especially from fibers. It has an aperture of 5 mm and can measure optical power from 500 nW to 2 W. It covers a spectral range from 220 to 1100 nm.

• 1.0" ID integrating sphere for diverging beam
• UV silicon photodiode for spectral range from 220 to 1100 nm
• Power measurement range from 500 nW to 2 W
• Hole diameter 5 mm
View all features
