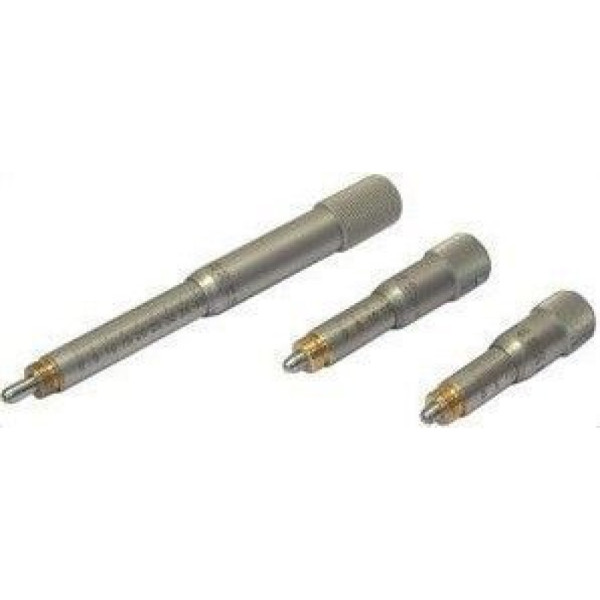

Micrometer screw Standa 9S75M-25-AL
SKU: Код товара: 29414
Цена:
0.00 р.
In Stock
- Brand: Standa
- Product Code: 263
The Standa 9S75M-25-AL micrometer screw is a high-quality fastener that ensures secure connections. It is made of durable material, guaranteeing durability and wear resistance.
Key Features:
Model: 9S75M-25-AL;
Type: micrometer screw;
Designed for precise adjustment and fixing of parts.
This screw is an indispensable tool in various applications where high precision and reliable connections are required.
They are manufactured with an M6x0.5 thread. Positioning sensitivity reaches 1 µm (0.5 mm per revolution). The fastening thread is M10x1 (screws with M10x0.5 threads are also available). If the scale is not visible, you can rotate the clamp until the scale is easily visible. The scale division is 0.01 mm.
The screws are available with seven different travel ranges. 9S75M and 9S75ML are used in mirror holders and linear translators, and can also be used in positioners from other manufacturers. To order a micrometer screw with an aluminum handle, add "-AL" to the screw code. For example, 9S75M-30-AL.
Travel range: 5, 10, 15, 20, 25, 30, 50 mm
Specifically designed for micro positioning applications
Material: Stainless steel
Tip: Hardened steel ball
Positioning sensitivity: 1 µm
Scale division: 10 µm
Ensures smooth movement
Copper bushing
Stainless steel or aluminum handle
