Power sensor EnergyMax-RS J-10MB-HE

0 reviews / Write a review

Цена:

50.00 р.

Qty

In Stock

Brand: Coherent
Product Code: EnergyMax-RS J-10MB-HE

Description
Reviews (0)

Specifications:

Spectral range	190 nm - 12 µm
Active area diameter	10 mm
Energy range	12 µJ - 20 mJ
Maximum average power	4 W
Cable type	RS232
Detector coating	MaxBlack
Equivalent noise energy	<1.2 µJ
Maximum pulse duration	17 µs
Maximum energy density	500 mJ/cm 2 (1064 nm, 10 ns)
Diffuser	No
Calibration error	±2%
Linearity of energy	±3%
Calibration wavelength	1064 nm
Cable length	3 m

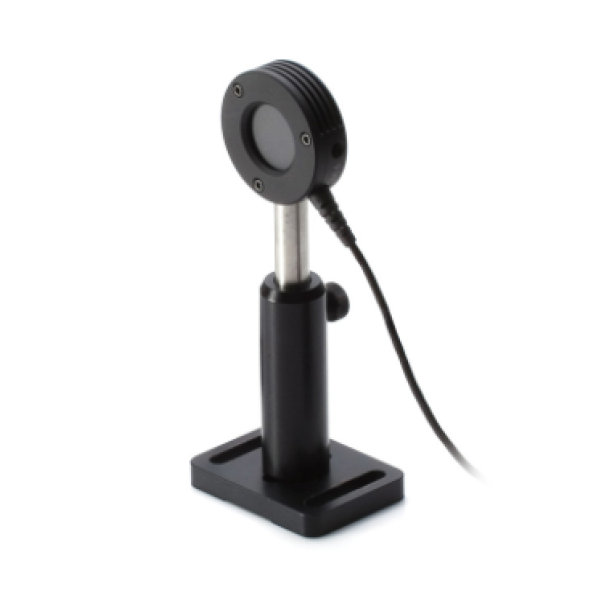

EnergyMax-RS J-10MB-HE - pyroelectric power/energy sensor with MaxBlack coating for measuring laser pulses from 12 µJ to 20 mJ at a rate of up to 1000 pps. RS232 interface.

Key Features:

Spectral range from 190 nm to 12 µm
Active area diameter 10 mm
Energy range from 12 μJ to 20 mJ
Works with a repetition rate of 1000 pps
RS232 interface
ISO 17025 compliant

The EnergyMax-RS J-10MB-HE energy sensor is equipped with an RS232 cable that connects directly to a PC or industrial controller. Power must be supplied via a 5VDC power supply (on request) or via Pin 1. A DB25 model is available.

OnSnab represents the entire range of measuring equipment Coherent, Inc. in the territory of the Russian Federation and the CIS countries and offers the most favorable terms of delivery of products, full technical support. You can get additional information by contacting our company.
